1SDA066433R1
Giá: Liên hệ
Mã sản phẩm: 1SDA066433R1
Share

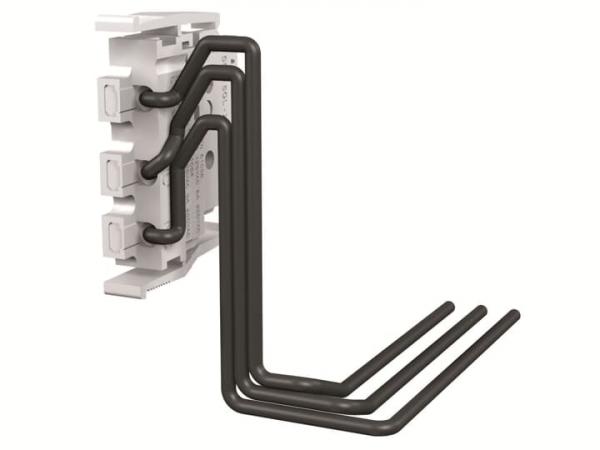

AUX-C 2Q+1SY 250Vac/dc XT1..XT4 F/P
General Information
-
- Extended Product Type:
- AUX-C 2Q+1SY 250Vac/dc XT1..XT4 F/P
-
- Product ID:
- 1SDA066433R1
-
- EAN:
- 8015644692704
-
- Catalog Description:
- AUX-C 2Q+1SY 250Vac/dc XT1..XT4 F/P
-
- Long Description:
- 2 CHANGEOVER CONTACT OPEN-CLOSED + 1 CHANGEOVER FOR TRIPPED INDICATION V <(><<)> 250V AC-DC WIRED ON C.BREAKER FIXED-PLUG-IN XT1..XT4
Categories
- Products » Low Voltage Products and Systems » Circuit Breakers » Moulded Case Circuit Breakers » Accessories for Tmax XT
Ordering
-
- EAN:
- 8015644692704
-
- Minimum Order Quantity:
- 1 piece
-
- Customs Tariff Number:
- 85389099
Dimensions
-
- Product Net Width:
- 110 mm
-
- Product Net Height:
- 60 mm
-
- Product Net Depth / Length:
- 140 mm
-
- Product Net Weight:
- 0,127 kg
Container Information
-
- Package Level 1 Units:
- 1 piece
-
- Package Level 1 Width:
- 110 mm
-
- Package Level 1 Height:
- 60 mm
-
- Package Level 1 Depth / Length:
- 140 mm
-
- Package Level 1 Gross Weight:
- 0,134 kg
-
- Package Level 1 EAN:
- 8015644692704
Additional Information
-
- Configuration Type:
- Loose or configurable
-
- Number of Auxiliary Contacts CO (SPDT):
- 3
-
- Order Multiple:
- 1 piece
-
- Product Main Type:
- Accessories for Tmax XT
-
- Product Name:
- Accessory
-
- Product Type:
- ACC
-
- Standards:
- IEC 60947-2
-
- Suitable For:
- XT1, XT2, XT3, XT4
-
- Suitable for Product Class:
- SACE Tmax XT
Certificates and Declarations (Document Number)
-
- Data Sheet, Technical Information:
- 1SDC210100D0203
-
- Instructions and Manuals:
- 1SDH000719R0615
Classifications
-
- ETIM 6:
- EC000041 - Auxiliary contact block
-
- ETIM 7:
- EC000041 - Auxiliary contact block
-
- Object Classification Code:
- Q
-
- UNSPSC:
- 39120000
-
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
