1SFA898121R7000

1SFA898121R7000
1SFA898121R7000

Giá: Liên hệ

Mã sản phẩm: 1SFA898121R7000

PSTX1250-600-70

General Information

  • Global Commercial Alias:
    PSTX1250-600-70
  • Extended Product Type:
    PSTX1250-600-70
  • Product ID:
    1SFA898121R7000
  • ABB Type Designation:
    PSTX1250-600-70
  • EAN:
    7320500510469
  • Catalog Description:

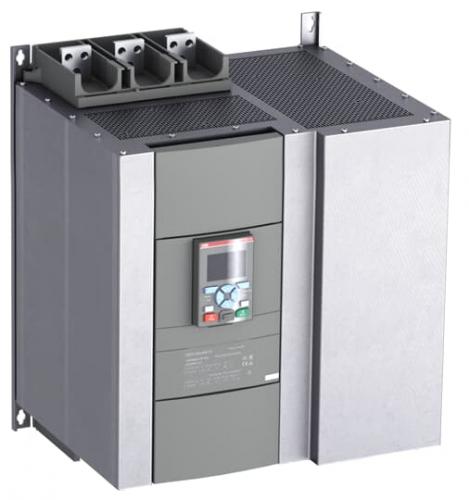

    PSTX1250-600-70 Softstarter
  • Long Description:
    Softstarter PSTX1250-600-70 for max 600V main voltage and 100 - 250V 50/60Hz control supply voltage.

Categories

  • Products » Drives » Softstarters » Softstarters » PSTX Softstarters » PSTX1250

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85044090

Popular Downloads

Dimensions

  • Product Net Width:
    435 mm
  • Product Net Height:
    515 mm
  • Product Net Depth / Length:
    367 mm
  • Product Net Weight:
    64.7 kg

Technical

  • Rated Operational Voltage:
    200 … 600 V AC
  • Rated Control Supply Voltage (Us):
    100 … 250 V AC
  • Rated Control Circuit Voltage (Uc):
    DC Operation 24 V
  • Rated Frequency (f):
    Main Circuit 50/60 Hz
  • Rated Operational Power - In-Line Connection (Pe):
    (230 V) 400 kW
    (400 V) 710 kW
    (500 V) 880 kW
  • Rated Operational Current - In-Line Connection (Ie):
    1250 A
  • Rated Operational Power - Inside Delta Connection:
    at 400 V 1200 kW
    at 500 V 1500 kW
  • Rated Operational Current - Inside Delta Connection:
    2160 A
  • Service Factor Percentage:
    100 %
  • Overload Protection:
    Build-in electronic overload protection
  • Integrated Electronic Overload:
    Yes
  • Adjustable Rated Motor Current Ie:
    30 ... 100 %
  • Starting Capacity at Maximum Rated Current Ie:
    4xIe for 10s
  • Initial Voltage During Start:
    10 ... 99 %
  • Step Down Voltage Special Ramp:
    100 ... 10 %
  • Current Limit Function:
    1.5 … 7.5 xle
  • Switch for Inside Delta Connection:
    Yes
  • Run Signal Relay:
    Yes
  • By-pass Signal Relay:
    Yes
  • Fault Signal Relay:
    Yes
  • Overload Signal Relay:
    Yes
  • Analog Outputs:
    0…10 V, 0…20 mA, 4…20 mA
  • Signal indication ready to start/standby ON (LED):
    Green
  • Signal indication running R (LED):
    Green
  • Signal indication protection (LED):
    Yellow
  • Signal indication fault (LED):
    Red
  • Communication:
    Built in Modbus interface, Anybus, FieldBusPlug (with adapter).
  • Degree of Protection:
    acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
  • Terminal Type:
    Main Circuit: Bars
  • Product Main Type:
    PSTX1250

Environmental

  • Ambient Air Temperature:
    Storage -40 ... +70 °C
    Operation -25 ... +60 °C
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    1 piece

Classifications

  • Object Classification Code:
    Q
  • ETIM 4:
    EC002572 - Electronic motor control and protection device
  • ETIM 5:
    EC002572 - Electronic motor control and protection device
  • ETIM 6:
    EC002572 - Motor management device
