3VA1116-3ED12-0AA0

3VA1116-3ED12-0AA0
3VA1116-3ED12-0AA0

Giá: Liên hệ

Mã sản phẩm: 3VA1116-3ED12-0AA0

Product
Article Number (Market Facing Number) 3VA1116-3ED12-0AA0

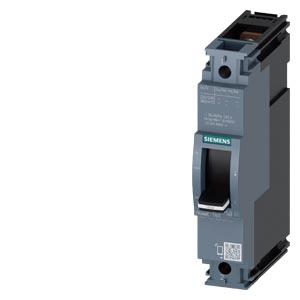

Product Description Circuit breaker 3VA1 IEC frame 160 breaking capacity class N Icu=25kA @ 240V 1-pole, line protection TM210, FTFM, In=160A overload protection Ir=160A fixed short-circuit protection Ii=10 x In nut keeper kit
Product family 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 12P
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor LBO-----
Delivery information
Export Control Regulations AL : N / ECCN : EAR99
Standard lead time ex-works 5 Day/Days
Net Weight (kg) 0,393 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension 34,00 x 140,00 x 108,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4042948829899
UPC 804766428777
Commodity Code 85362090
LKZ_FDB/ CatalogID LV10.1
Product Group 5375
Country of origin Czech Republic
Compliance with the substance restrictions according to RoHS directive Since: 01.04.2014
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
