Máy cắt không khí 3WL1106-2CB32-1AA2
Giá: Liên hệ
Mã sản phẩm: 3WL1106-2CB32-1AA2
Share

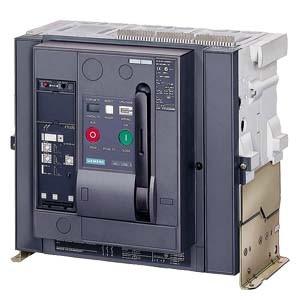

Fixed-mounted circuit breaker 3-pole, size I, IEC In=630A to 690V,
AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in
With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC
AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in
With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC
Specification
| Article Number (Market Facing Number) | 3WL1106-2CB32-1AA2 |
| Product Description | fixed-mounted circuit breaker 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC |
| Product family | Not available |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Price Group / Headquarter Price Group | WN / 1CA |
| List Price | Show prices |
| Customer Price | Show prices |
| Metal Factor | LAO----- |
| Delivery information | |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | 5 Day/Days |
| Net Weight (kg) | 43.000 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 85362090 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Product Group | 3745 |
| Group Code | P360 |
| Country of origin | Czech Republic |
| Compliance with the substance restrictions according to RoHS directive | Given |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | |
