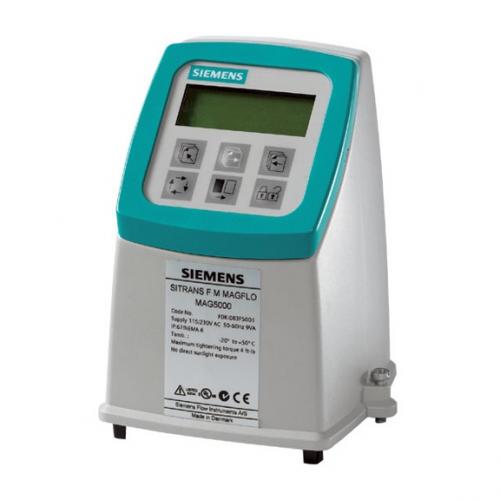

SITRANS F M MAG 5000
Giá: Liên hệ
Mã sản phẩm: SITRANS F M MAG 5000
Share
The SITRANS F M MAG 5000 is a microprocessor-based transmitter engineered for high performance, easy installation, commissioning and maintenance. The transmitter is truly robust, cost-effective and suitable for all-round applications and has a measuring accuracy of ± 0.4% of the flow rate (incl. sensor). In order to have a complete flowmeter, please combine it with one of the following MAG sensors:
Detail
| Accuracy | 0.4 % ±1 mm/s |
| Input / output |
1 current output 1 digital output 1 relay output |
| Communication | HART |
| Display |
Background illumination with alphanumeric text, 3 x 20 characters |
| Enclosure |
IP67 (NEMA 4x/6) IP20 (NEMA 2) |
| Power supply |
12-24 V a.c./d.c. 115-230 V a.c. |
| Ambient temperature | From -20 to 50 °C (-4 to 122 °F) |
| Approvals |
MI-001 Danak PTB OIML R49 |
| Ex-approvals |
FM/CSA Class 1, Div 2 |
