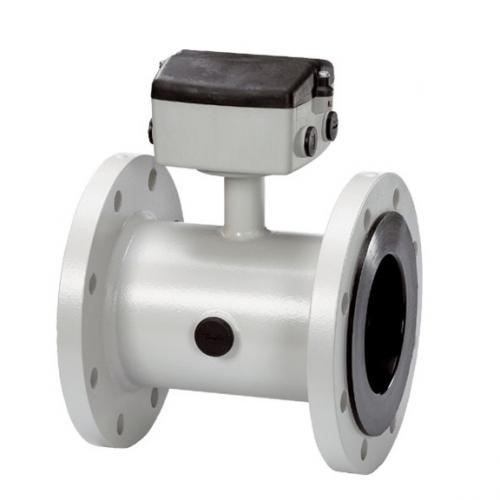

SITRANS F M MAG 5100 W
Giá: Liên hệ
Mã sản phẩm: SITRANS F M MAG 5100 W
Share
The SITRANS F M MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications such as ground water, drinking water, cooling water, waste water, sewage or sludge applications.
In order to have a complete flowmeter, please combine it with one of the following MAG transmitters:
Detail
| Meassuring range | 0 to 10 m/s |
| Nominal Sizes | From DN 15 to DN 2000 (1" to 78") |
| Accuracy | 0.2 % ±2.5 mm/s |
| Operating Pressure | Max. 16 bar (Max. 150 psi) |
| Ambient temperature | From -40 to 70 °C (-40 to 158 °F) |
| Medium Tempreature | From -10 to 70 °C (14 to 158 °F) |
| Liners | EPDM NBR hard rubber Ebonite hard rubber |
| Electrodes |
Hastelloy C-276 Built-in grounding electrodes |
| Material |
Carbon steel, with corrosion resistant two-component epoxy coating |
| Drinking Water Approvals |
EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, ACS and BelgAqua NBR: NSF/ANSI Standard 61, WRAS Ebonite: WRAS |
| Custody Transfer Approvals |
OILM R 49 MI-001 PTB K7.2 (Germany) BEV OE12/C040 (Austria) |
| General approval | MCERTS Sira Certificate No. MC080136/00 |
