1SDA066511R1
Giá: Liên hệ
Mã sản phẩm: 1SDA066511R1
Share
-
-
- Extended Product Type:

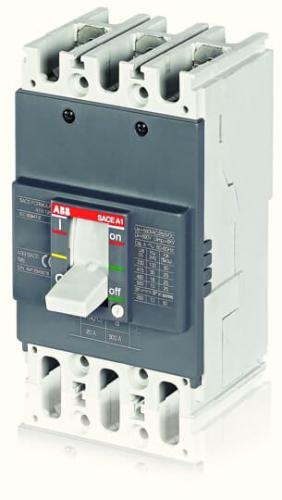

- A1A 125 TMF 20-400 3p F F
-
- Product ID:
- 1SDA066511R1
-
- EAN:
- 8015644004231
-
- Catalog Description:
- A1A 125 TMF 20-400 3p F F
-
- Long Description:
- C.BREAKER FORMULA A1A 125 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 20-400 A
Categories
- Products » Low Voltage Products and Systems » Circuit Breakers » Moulded Case Circuit Breakers » FORMUL
-
Ordering
-
- EAN:
- 8015644004231
-
- Minimum Order Quantity:
- 1 piece
-
- Customs Tariff Number:
- 85362090
Dimensions
-
- Product Net Width:
- 76.2 mm
-
- Product Net Height:
- 130 mm
-
- Product Net Depth / Length:
- 60 mm
-
- Product Net Weight:
- 0,78 kg
Container Information
-
- Package Level 1 Units:
- 1 piece
-
- Package Level 1 Width:
- 136.5 mm
-
- Package Level 1 Height:
- 124 mm
-
- Package Level 1 Depth / Length:
- 110.5 mm
-
- Package Level 1 Gross Weight:
- 0.8 kg
-
- Package Level 1 EAN:
- 8015644004231
Additional Information
-
- Electrical Durability:
- 1500 cycle
-
- Mechanical Durability:
- Nr. Operations 8500 cycle
-
- Number of Poles:
- 3
-
- Opening Time:
-
CB with SOR 15 ms
CB with UVR 15 ms
-
- Power Loss:
- at Rated Operating Conditions per Pole 3 W
-
- Product Main Type:
- SACE FORMULA
-
- Product Name:
- Moulded Case Circuit Breaker
-
- Product Type:
- CB
-
- Rated Current (In):
- Main Circuit 20 A
-
- Rated Impulse Withstand Voltage (Uimp):
- 6 kV
-
- Rated Insulation Voltage (Ui):
- 690 V
-
- Rated Operational Voltage:
-
550 V AC
250 V DC
-
- Rated Service Short-Circuit Breaking Capacity (Ics):
-
(240 V AC) 12.5 kA
(380 V AC) 5 kA
(415 V AC) 5 kA
(440 V AC) 4 kA
(480 V AC) 3.75 kA
(500 V AC) 2.5 kA
(250 V DC) 2 Poles in Series 2.5 kA
-
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
-
(240 V AC) 10 kA
(380 V AC) 10 kA
(415 V AC) 10 kA
(440 V AC) 8 kA
(480 V AC) 7.5 kA
(500 V AC) 5 kA
(250 V DC) 5 kA
-
- Rated Uninterrupted Current (Iu):
- 125 A
-
- Release Type:
- TM
-
- Standards:
- IEC
-
- Sub-type:
- A1
-
- Terminal Connection Type:
- Front
-
- Version:
- F
Certificates and Declarations (Document Number)
-
- Data Sheet, Technical Information:
- 1SDC210032D0204
-
- Declaration of Conformity - CE:
- 9AKK106713A5519
-
- Environmental Information:
- 1SDL000183R0001
-
- Instructions and Manuals:
- 1SDH000717R0001
Classifications
-
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
-
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
-
- ETIM 6:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
-
- ETIM 7:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
-
- Object Classification Code:
- Q
-
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
-
